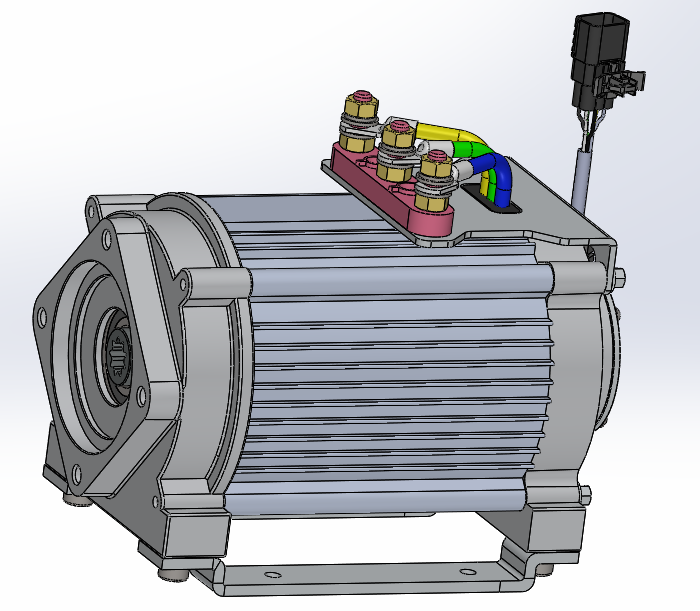

5KW permanent magnet synchronous motor/asynchronous motor

High efficiency + high power density:

The high – efficiency range accounts for over 75%.

When the load rate is within the range of 30% – 120%, the efficiency exceeds 90%.

Low noise + low vibration

485 magnetic encoder: High control precision and good stability

Adopting IPM magnetic circuit topology to achieve field – weakening control, with a wide speed – regulation range and high torque output capability

High compatibility: The motor’s installation dimensions are compatible with those of the mainstream asynchronous motors on the market.

Parameters	Values
Rated operating voltage	48V
Motor type	IPM Permanent Magnet Synchronous Motor
Motor slot	12/8
Temperature resistance grade of magnetic steel	N38SH
Motor duty type	S1-60min
Rated power of the motor	5000W
Protection level	IP65
Insulation level	H
CE-LVD standard	EN 60034-1,EN 1175

CONTACT NOW pdf

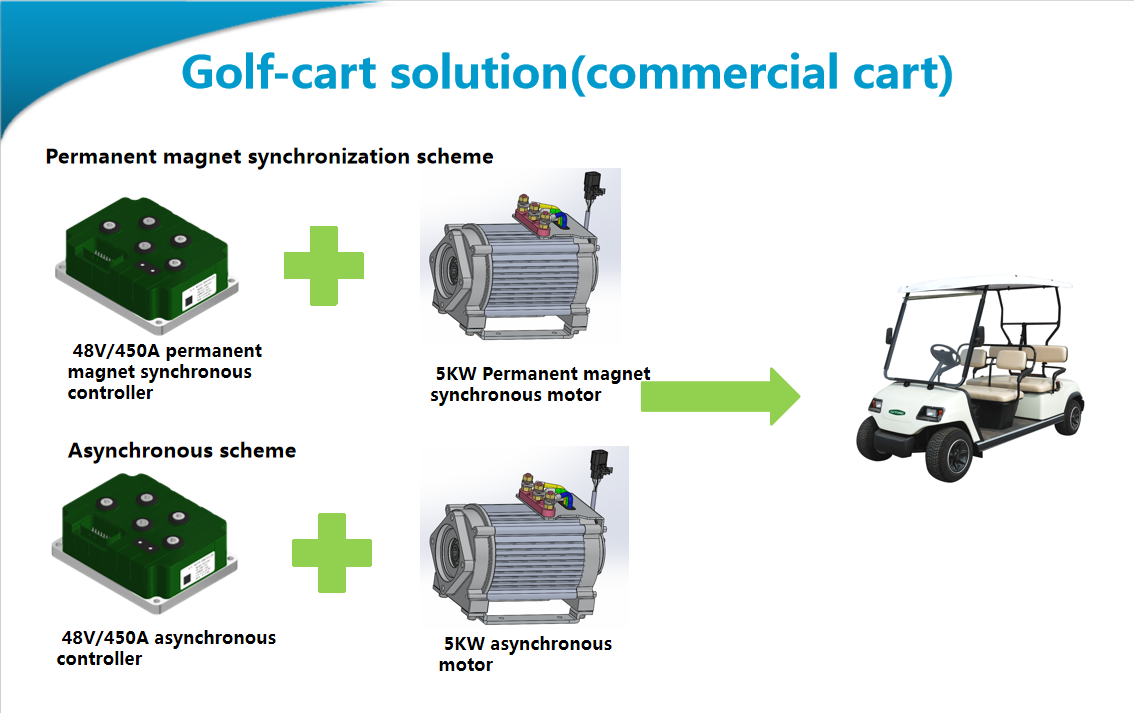

We provide you with

Advantages of Permanent Magnet Synchronous Motors

Small volume+Light weight+high Efficiency+High precision

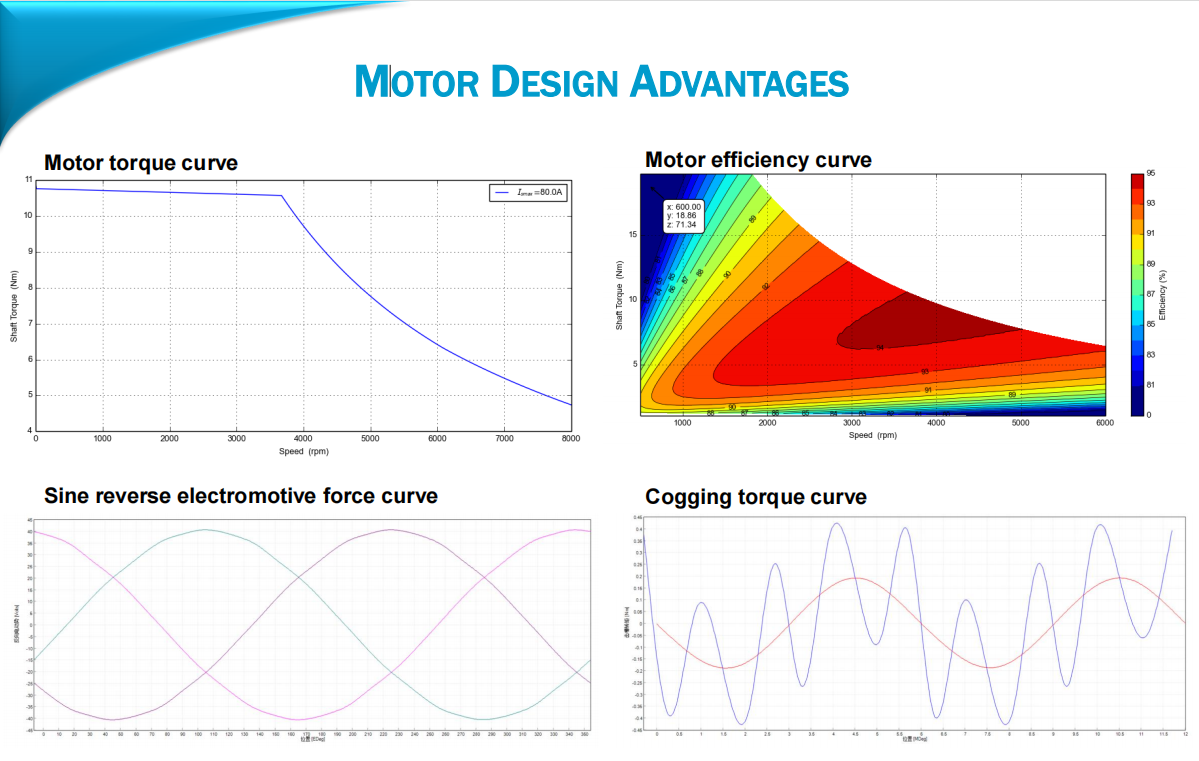

MOTOR DESIGN ADVANTAGES

•
Higher operating efficiency > 89%, lower energy dissipation.
•
＞ 90% high efficiency range
•
IP Rating: IP65
•
Higher power density of PMSM, 2 times greater than asynchronous
motor under same rated power.
•
Power overload > 3 times

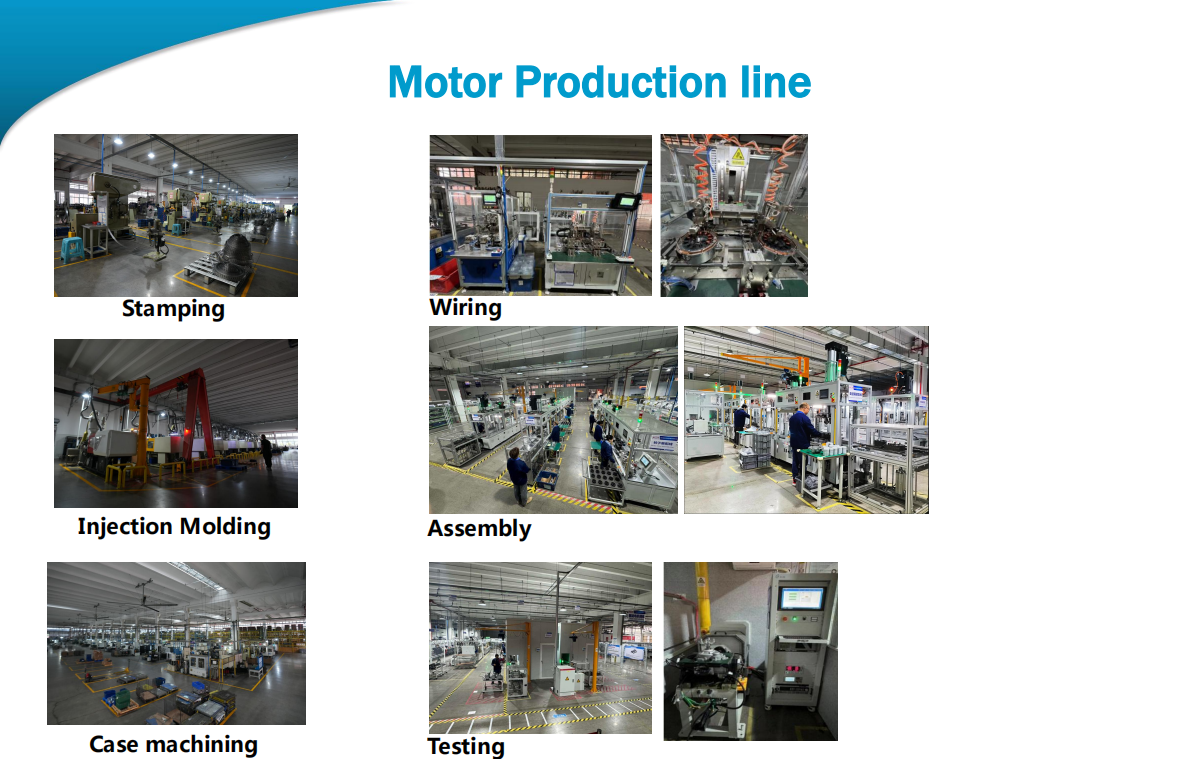

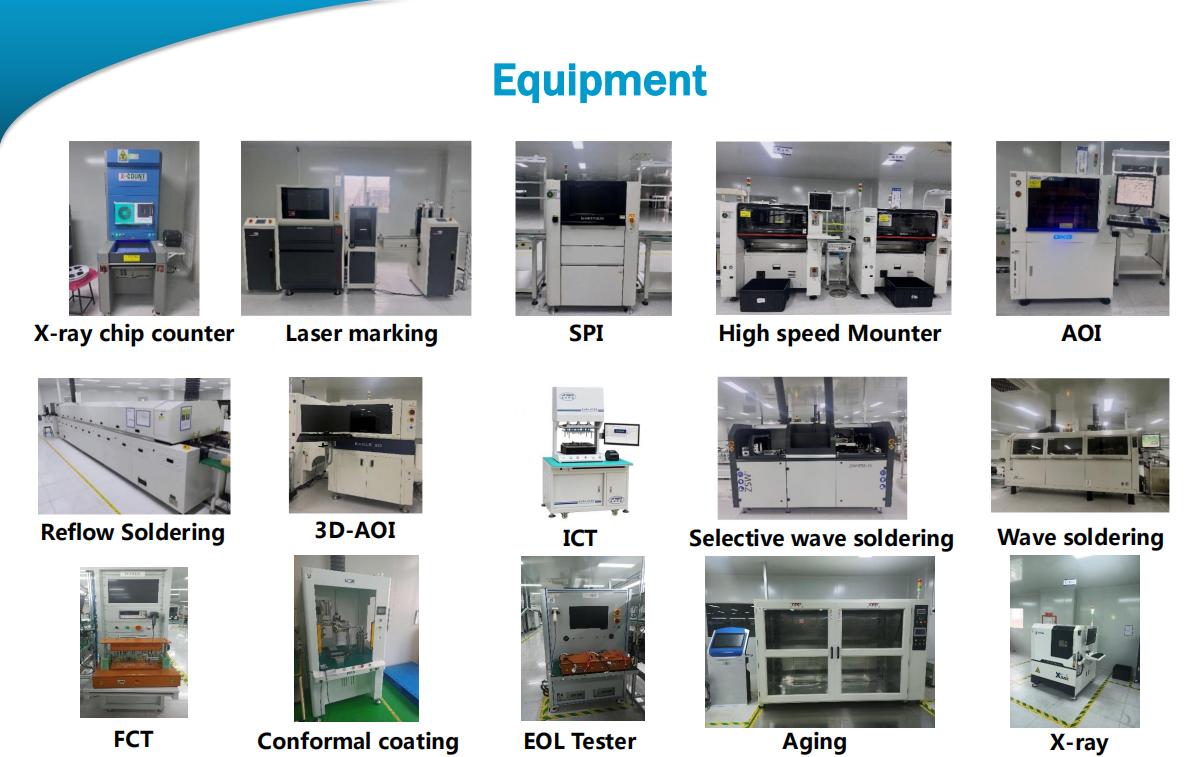

Motor Workshop

§ Basic Info. -----350k pcs/year
• Structure: 480㎡

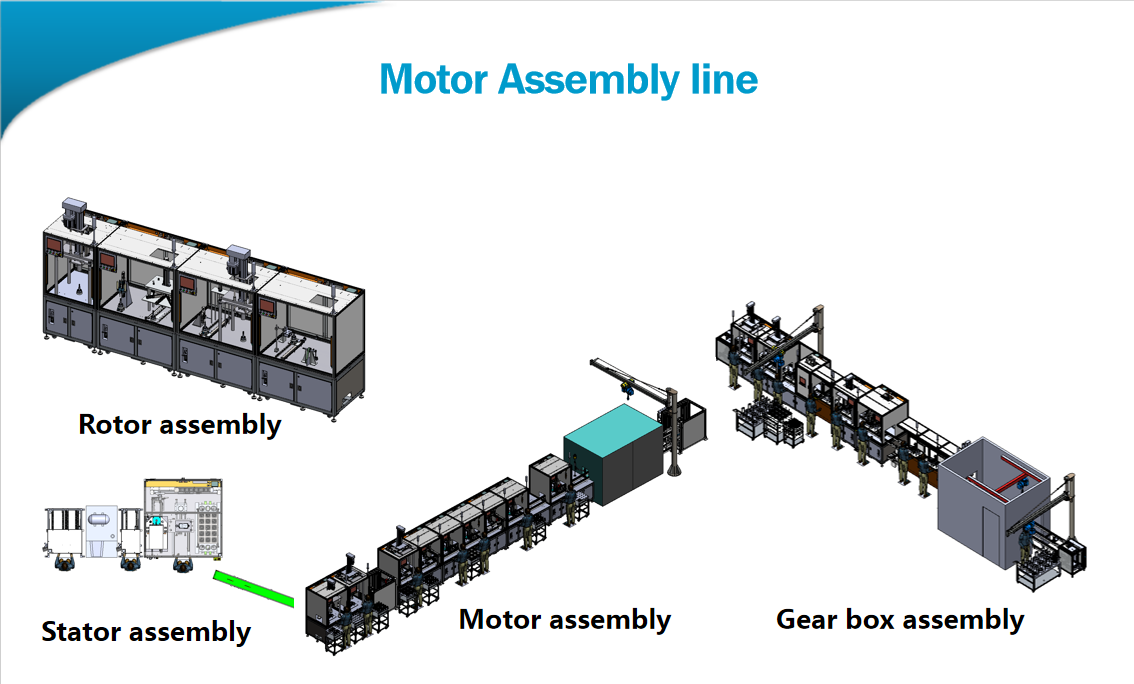

o Automatic rotor assembly line
o Semi-automatic stator assembly line
o Motor assembly line
o Gearbox assembly line
• CT 60 seconds, FPY ≥ 99.5%, OEE ≥ 85%
§ Advantages compare with manual assembly line
• Labor - reduce labor cost and administrative cost.
• Efficiency and quality - reduce production lead time, improve efficiency and quality.
• Competitiveness - automation to improve production capacity, cost reduction and improve
competitiveness.
• Industrialization - automation, informatization and Internet of Things.
• System - MES system, contribute to equipment parameter monitor, product data traceability and
production process monitor.
• Compatibility - 700w to 5kw motor.

Parameters	Values
Rated operating voltage	48V
Motor type	IPM Permanent Magnet Synchronous Motor
Motor slot	12/8
Temperature resistance grade of magnetic steel	N38SH
Motor duty type	S1-60min
Rated phase current of the motor	65A
Rated torque of the motor	9.6N.m
Rated power of the motor	3000W
Rated speed of the motor	3000 rpm
Protection level	IP65
Insulation level	H
CE-LVD standard	EN 60034-1,EN 1175
