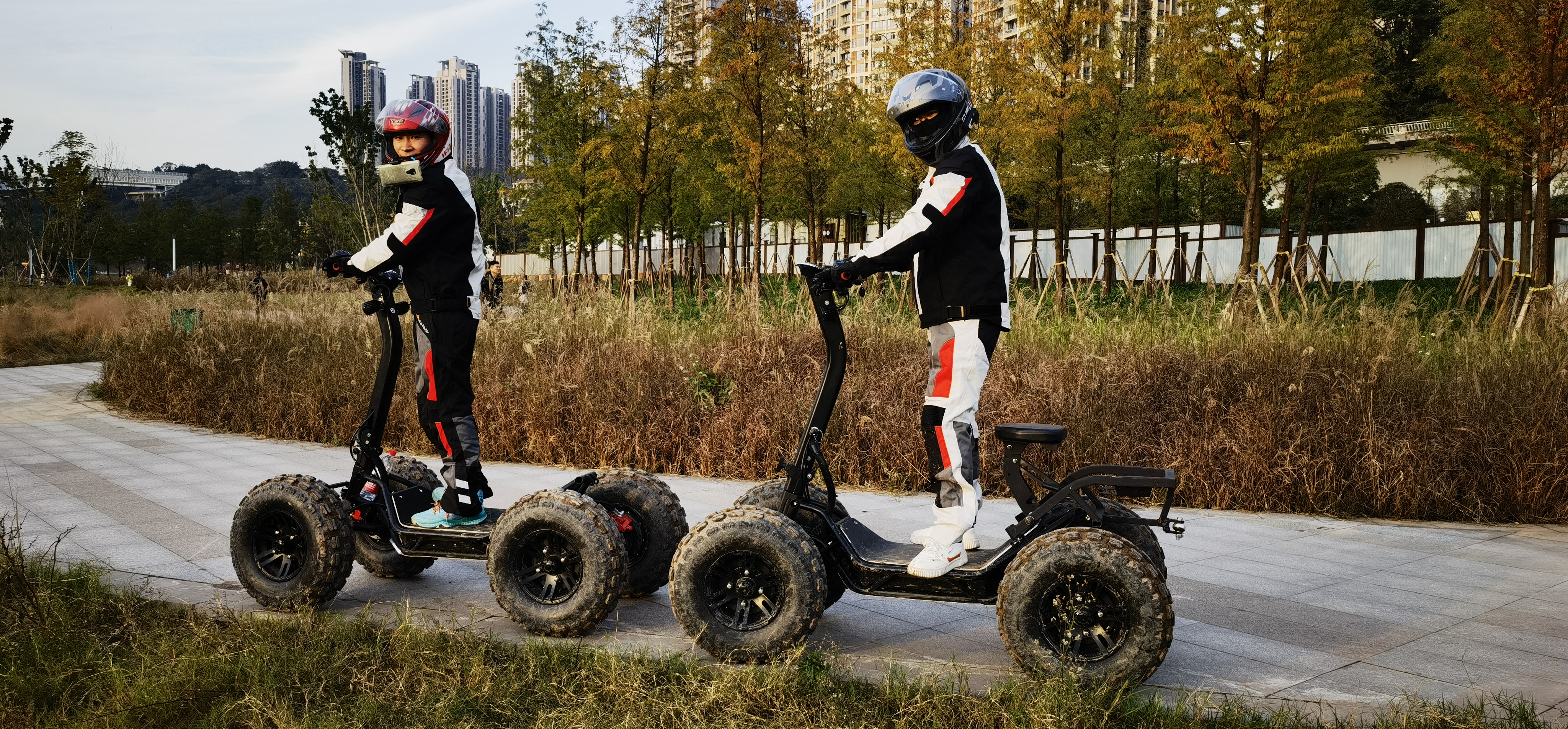

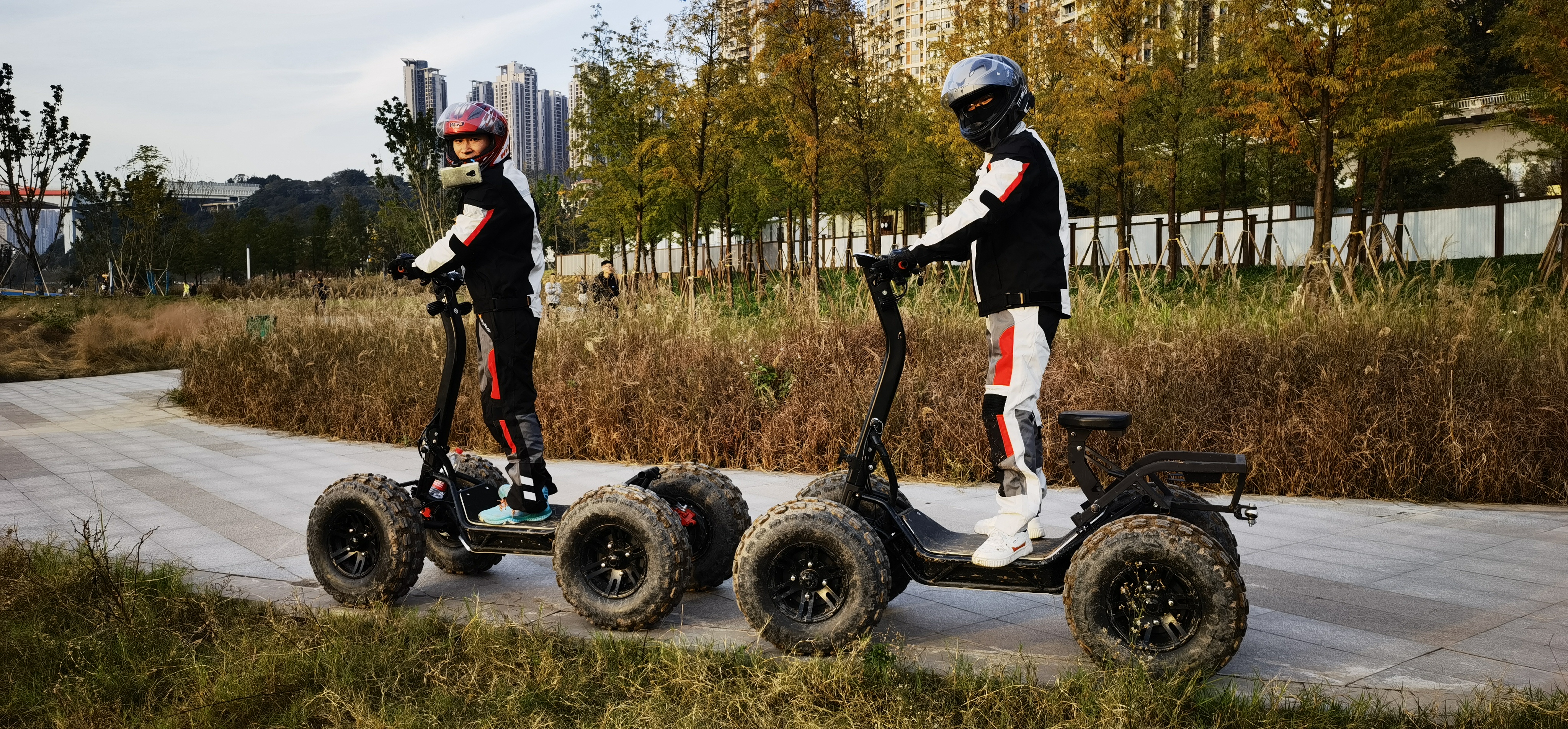

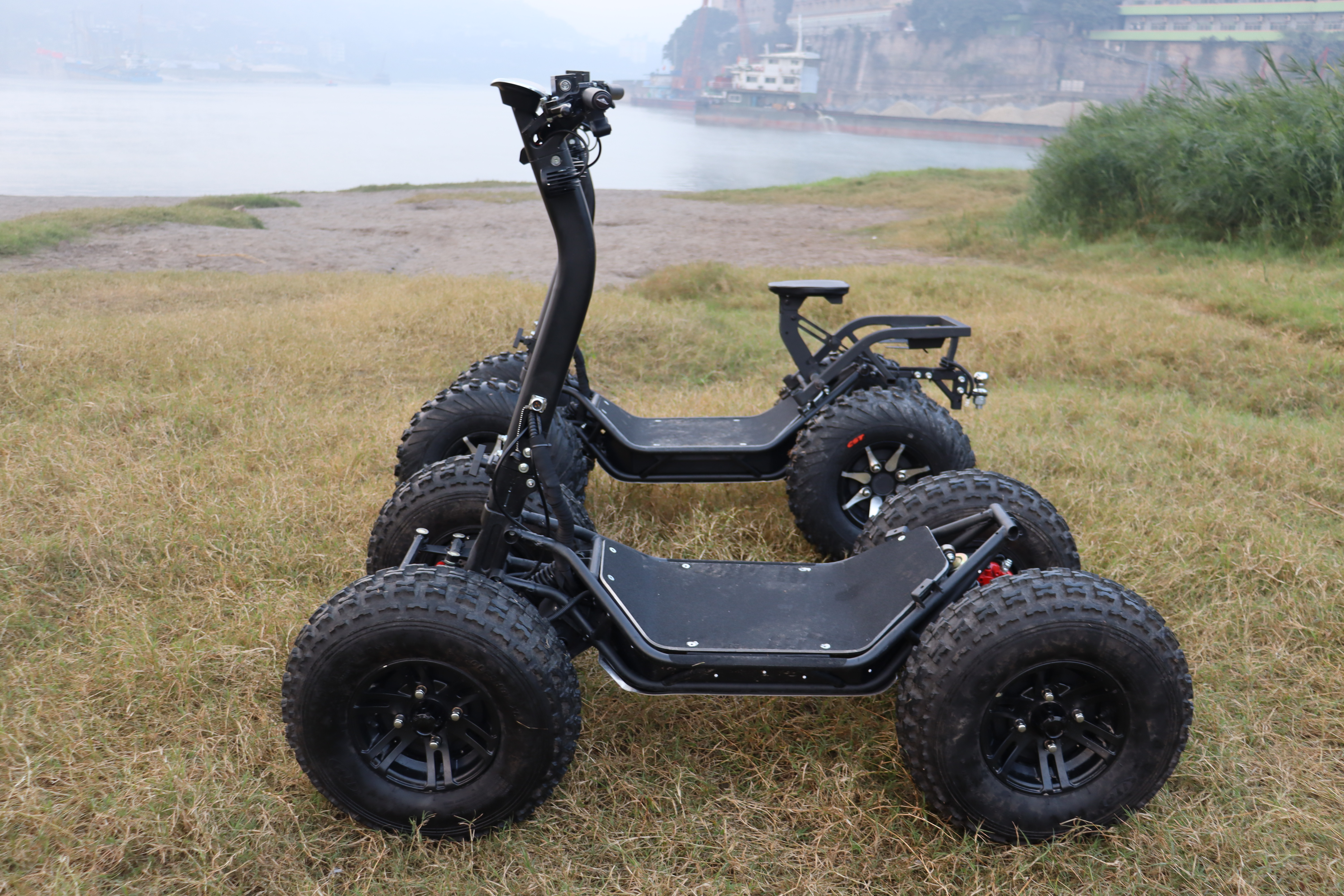

Latest Design 4800W 60V 45Ah 4*4 Quad Motor All Terrain Electric Off Road Electric Scooters ATV

    Features：



    Featuring an innovative articulated chassis system with adaptive linkages and precision-engineered roll stiffness, this breakthrough design delivers unrivaled off-road dominance.

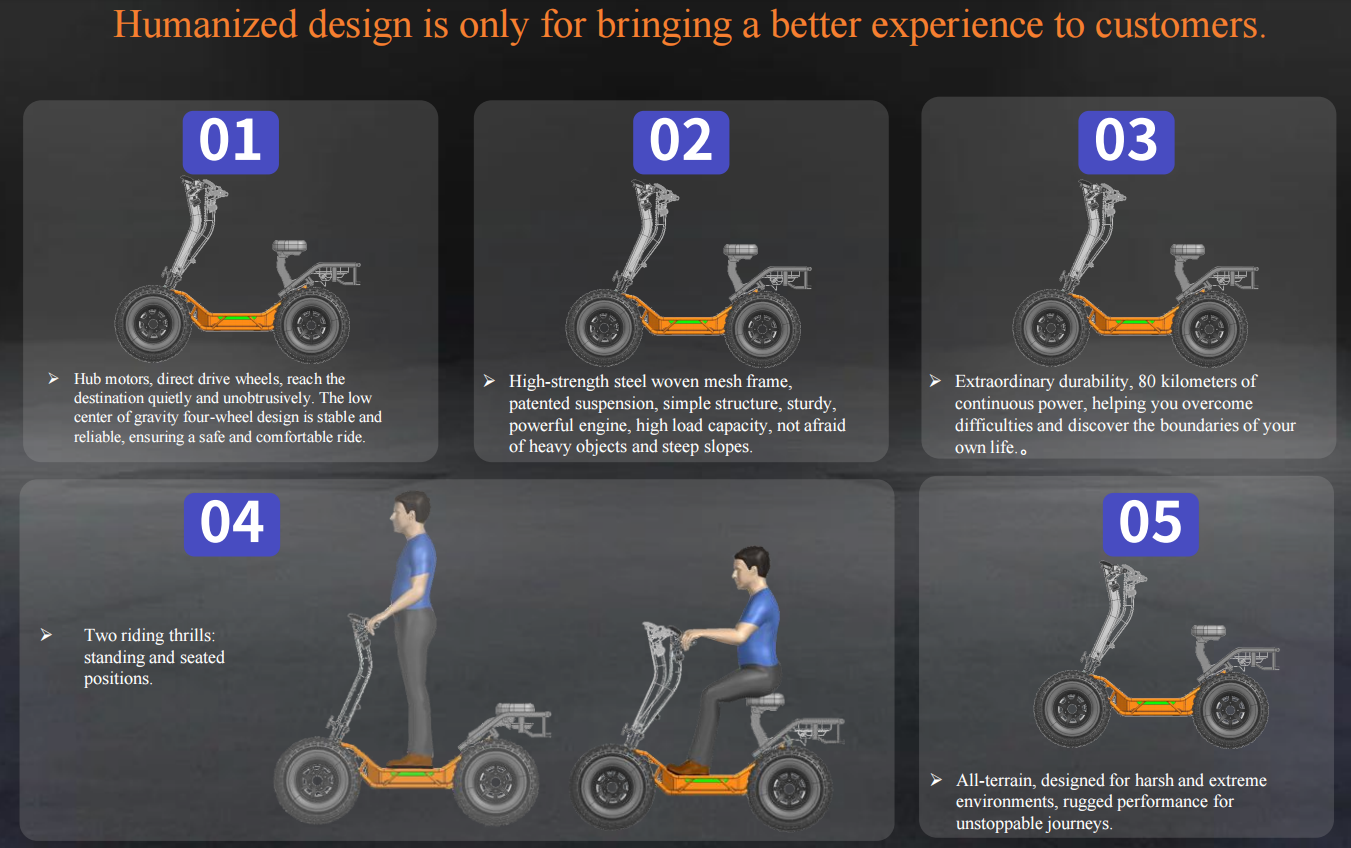

    The user-centered design integrates a dual-angle adjustable steering column and a patent-pending folding seat system, enabling seamless transitions between standing pedaling and seated riding postures.



    The integration of a low-noise, high-precision motor with rapid transient response and exceptional torque density at low RPMs redefines off-road exploration and competitive racing experiences through enhanced dynamic controllability.



    The implementation of NMC lithium-ion batteries with superior energy density, high specific power (15kW/kg), and extended cycle durability (3000+ cycles @80% DoD) delivers a 22% improvement in vehicle range efficiency



    Basic Specifications：

    Outer dimensions cm

    171*80*135

    Endurance mileage km

    80

    Fastest speed km/h

    45

    Load weight

    200

    Net weight kg

    130

    Battery spec

    60V45Ah

    Tire spec

    22X7-10

    Cimbable gradient

    40°

    Braking state

    Front hydraulic disc brake, rear hydraulic disc brake

    Unilateral shaft electric power

    1.2KW  4pcs

    Drive mode

    Four-wheel drive

    Steering column

    Adjustable at two angles

    Frame of the vehicle

    Steel pipe weaving

    Headlights

    12V5W  2pcs

    Folding chair / trailer

    Optional
  • 1
  • 2(1)
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 1
mailCONTACT NOW pdfpdf Download

We provide you with

  • Optional product configurations:

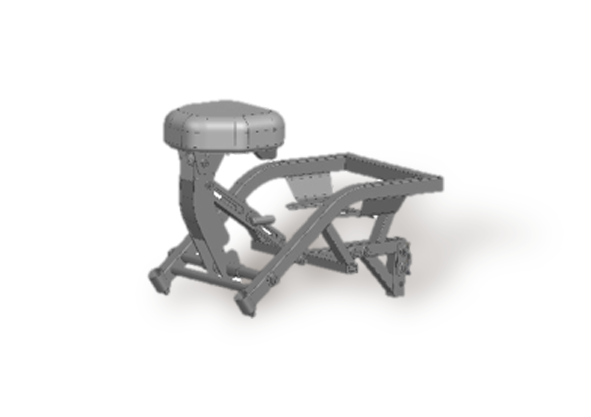

    Optional configuration 1: Seat

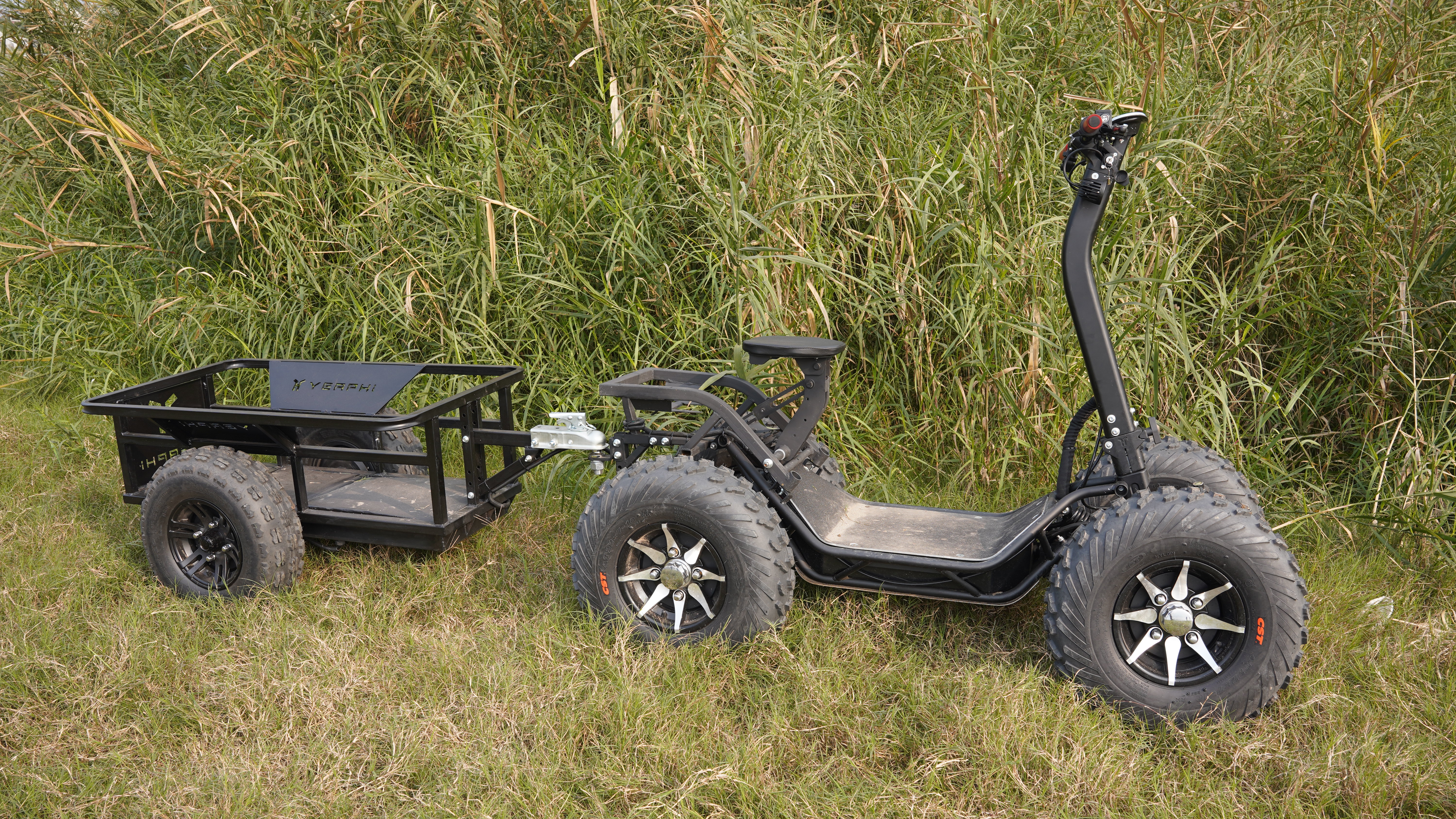

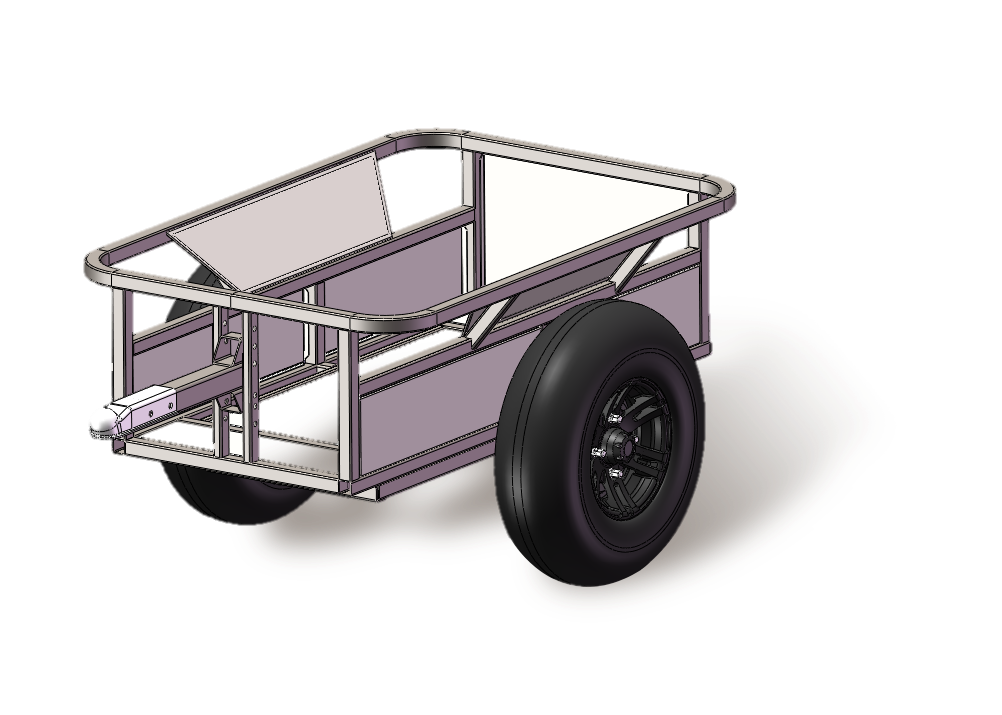

    Optional configuration 2: Trailer
    The upgraded version of the trailer has a volume of 207L (excluding the part of the cargo box that protrudes). It is perfect for transporting outdoor, beach and camping resources, solving the problems of moving and storage.
    The trailer can be optionally equipped with a power drive, providing sufficient power for carrying loads on outdoor steep slopes and ensuring high safety.

  • Product advantages

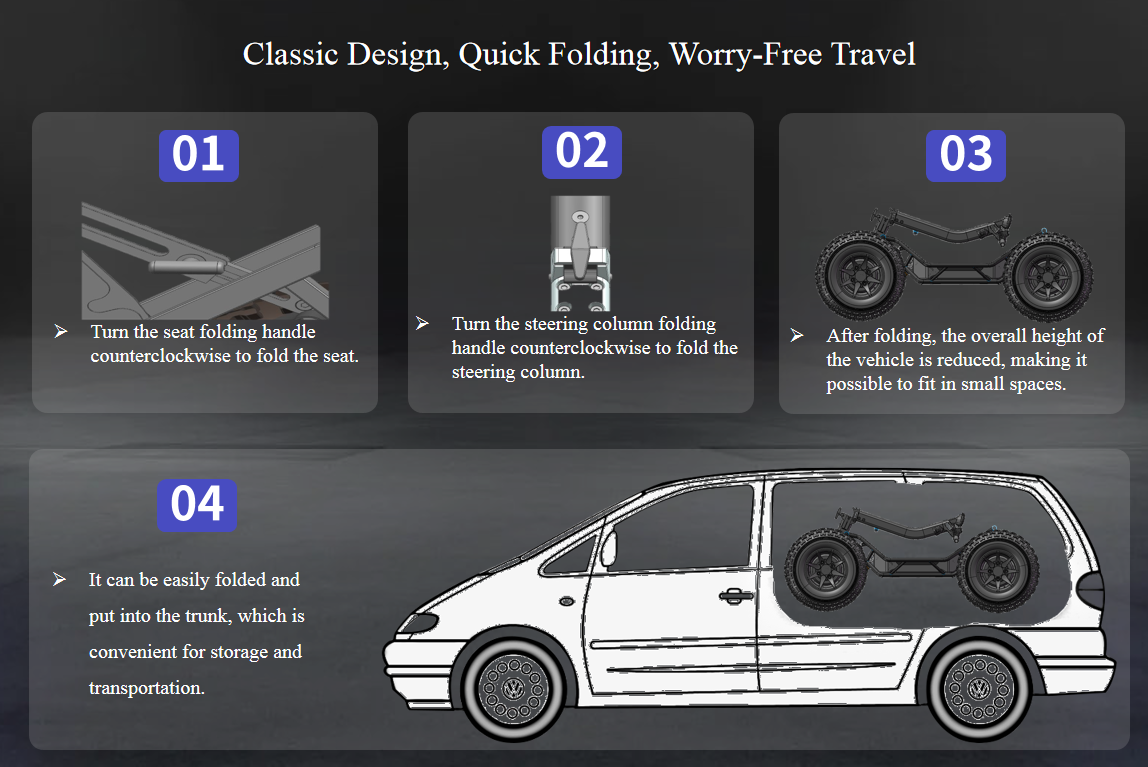

    Classic Design, Quick Folding, Worry-Free Travel

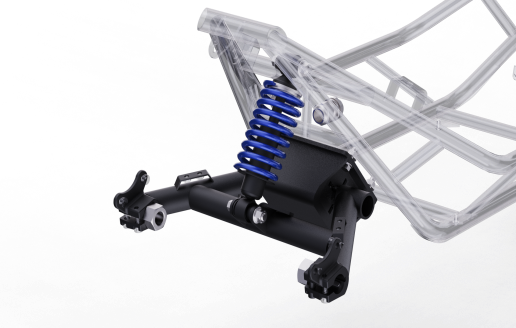

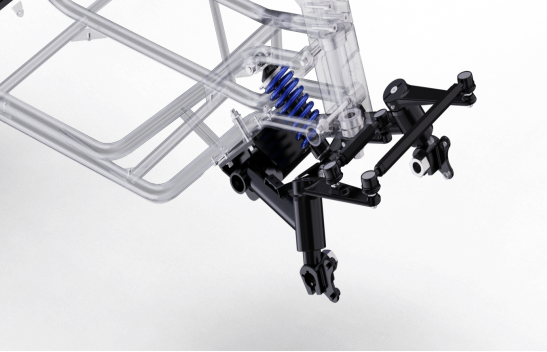

    The new suspension system has been adopted, featuring a sturdy and stable structure. It is equipped with shock-absorbing rubber with independent intellectual property rights and shock absorbs matched for off-road conditions, significantly enhancing the vehicle's driving possiblity and off-road performance.

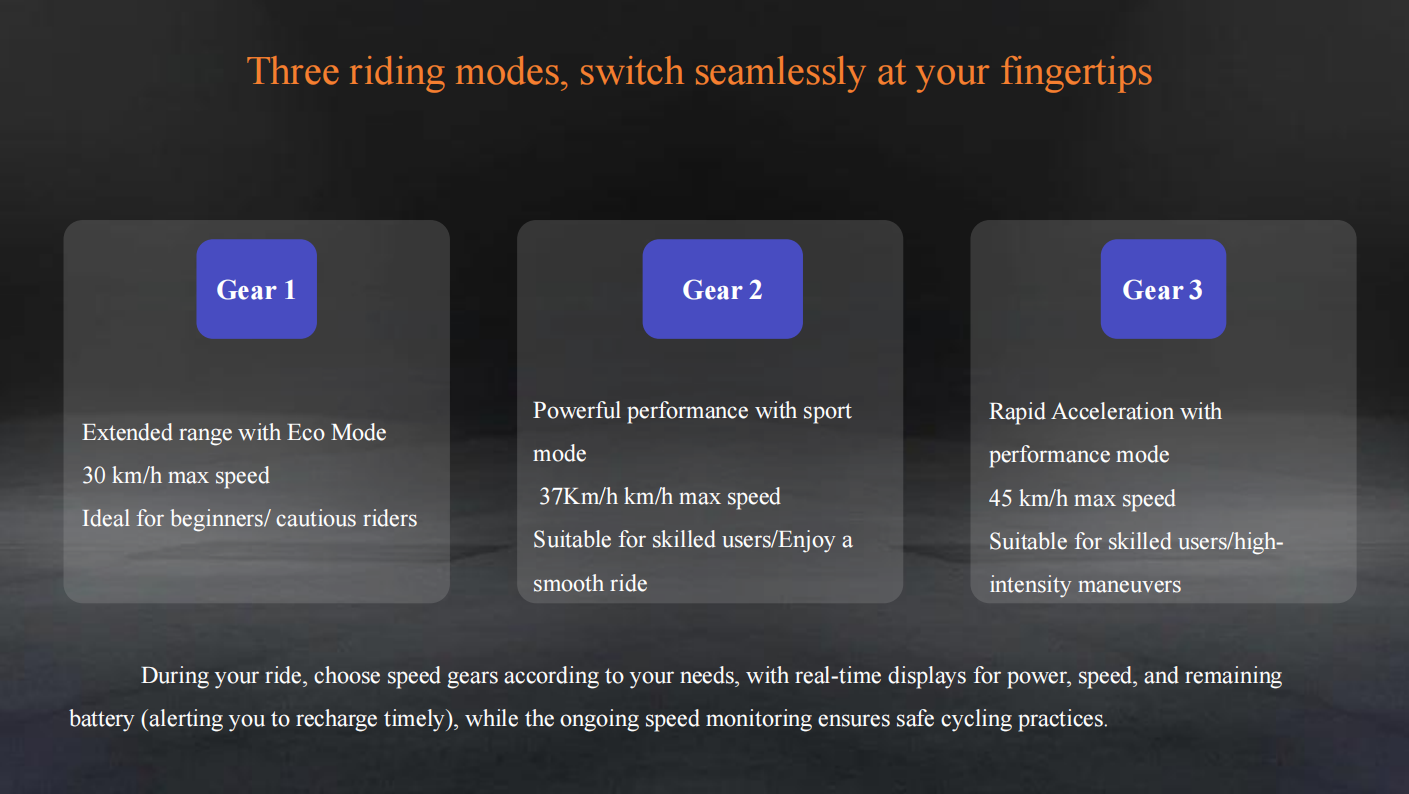

  • Product gear introduction

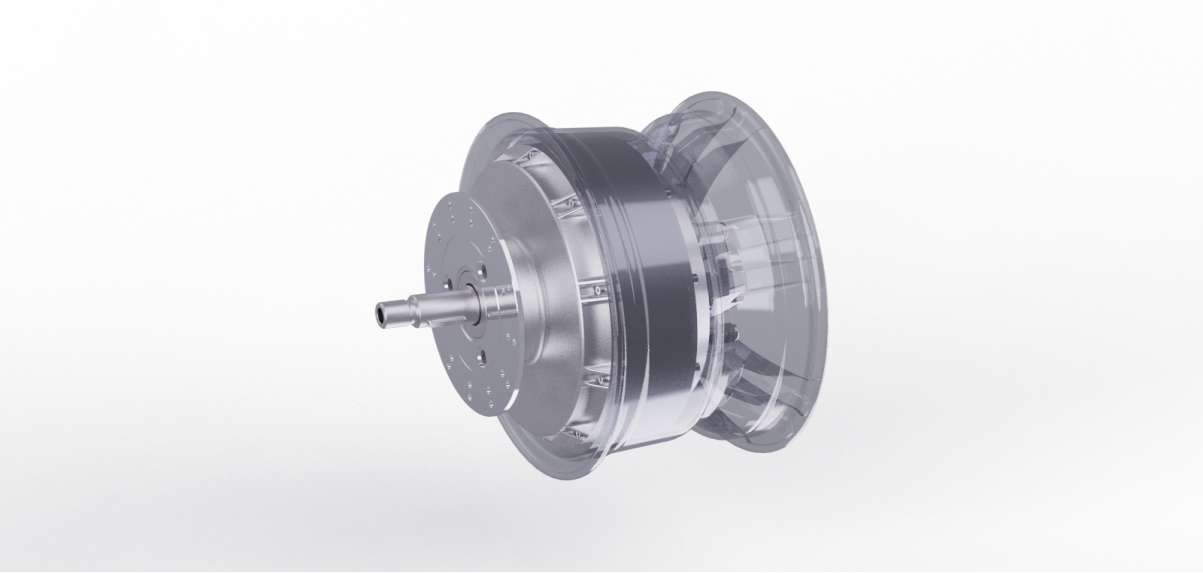

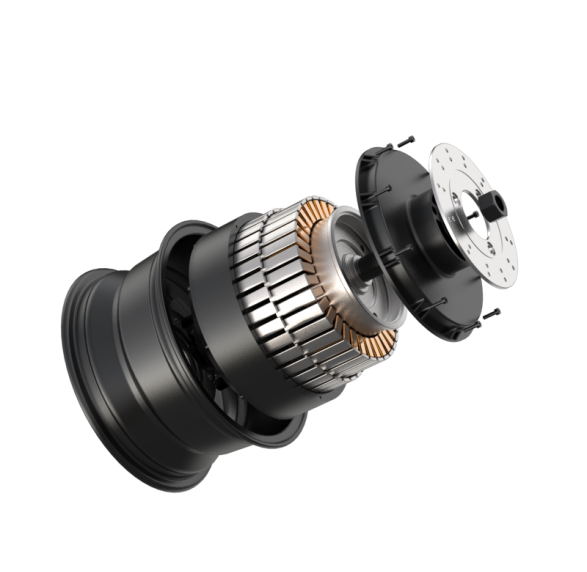

    Adopting mature hub motors, with a compact structure and quick installation and maintenance. It features a four-wheel drive structure, providing strong off-road performance.

    Single motor power: 1200W
    Peak power:2500W

    Max rpm of motor:600rpm
    Max torque of motor: 80 N.m
    Max climbable gradient: 40°

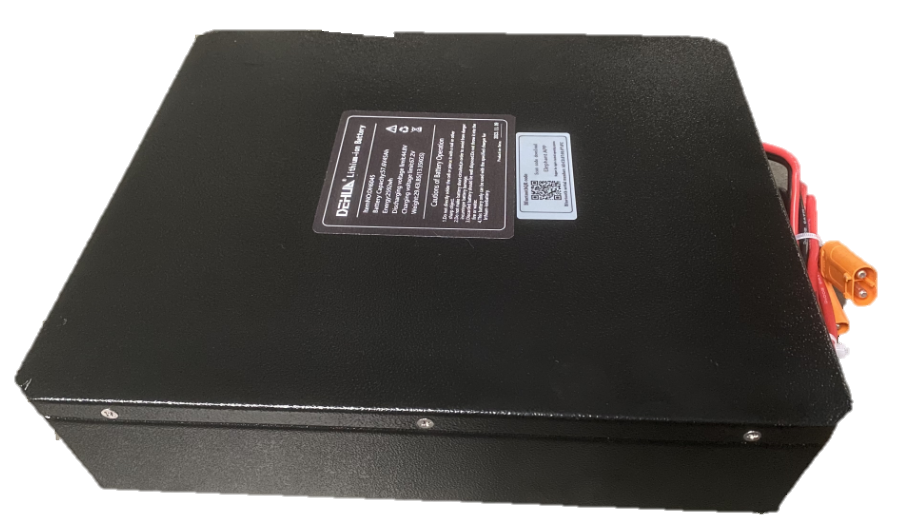

    The advantages of ternary lithium batteries include large single-cell capacity, the adoption of a controllable dual-valve structure design for safety valves, which enhances safety and extends service life. The battery pack is compact, lightweight, and has strong environmental adaptability.

Product features

  • 01

    Company Introduction

      Chongging Yuxin Pingrui Elecronic Co, TD. (abbreviated as “Yuxin Electronics,” stock code 301107) is a national high-tech enterprise, which is traded on the Shenzhen Stock Exchange. Yuxin was founded in 2003 and is head-quatered in Gaoxin Disrict chongging. We are dedicated to R&D, manufacturing, and sales electric components for general gasoline engines ,off-road vehicles,and automobile industries. Yuxin always adheres to independent technological innovation. We own three R&D centers located in chongqing, Ningbo and Shenzhen and a comprehensive test center. We also own a technical support center located in Milwaukee, Wisconsin USA. We have 200 national patents, and a number of honors such as little Giants Intellectual Property Advantage Enterprise, Provincial Engineering Technology Research Center, Key Laboratory Ministry of industry and information Technology Industrial Design Center, and a number of international certifications, such as lATF16949, 1S09001, 1S014001 and 1S045001.With advanced R&D technology, manufacturing technology,quality management and global supply capability, Yuxin has established long- term stable cooperative relationships with many domestic and foreign first-class enterprises.

  • 02

    company picture

      dfger1

Basic Specifications

121



Outer dimensions cm

171*80*135

Endurance mileage km

80

Fastest speed km/h

45

Load weight

200

Net weight kg

130

Battery spec

60V45Ah

Tire spec

22X7-10

Cimbable gradient

40°

Braking state

Front hydraulic disc brake, rear hydraulic disc brake

Unilateral shaft electric power

1.2KW  4pcs

Drive mode

Four-wheel drive

Steering column

Adjustable at two angles

Frame of the vehicle

Steel pipe weaving

Headlights

12V5W  2pcs

Folding chair / trailer

Optional

Other key parameters for the all terrain scooter H2 electric powered vehicle

Parameter name

ATS-H4

Wheel base (cm)

113

Wheel track(cm)

62

Height after folding (cm)

71

Steering column

Can be folded in two steps

Approach Angle

90⁰

Departure angle

90⁰

Brake

Four-wheel hydraulic disc brakes

Cell Type

Ternary lithium battery

Battery energy (kW.h)

2.7

Battery weight (kg)

13.03

Battery operating temperature

（-22℃-55℃）

Continuous working current A

120

Number of motors

4

Rated speed r/min

500

Rated torque (Nm)

70

Motor working noise (dB)

≤65

Charger output parameters

8A

Gross weight of the vehicle after packing (kg)

155
