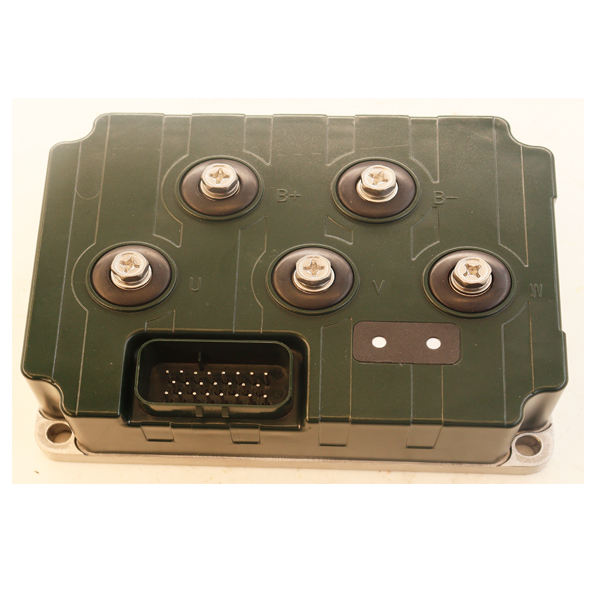

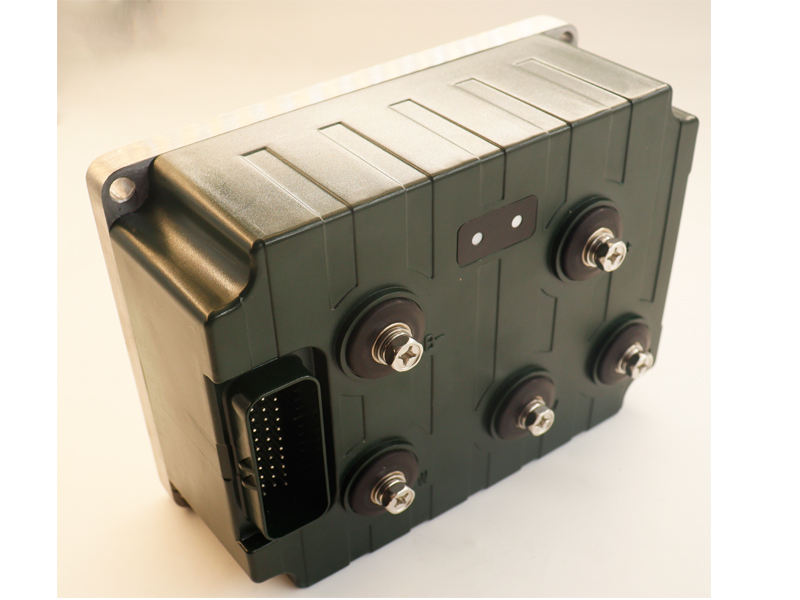

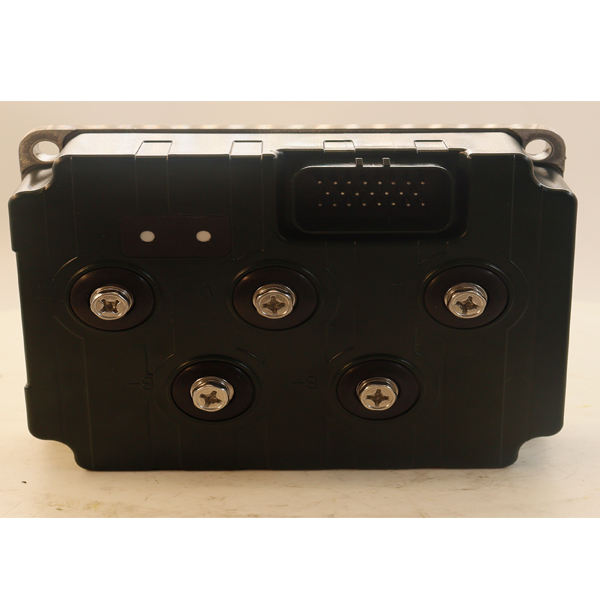

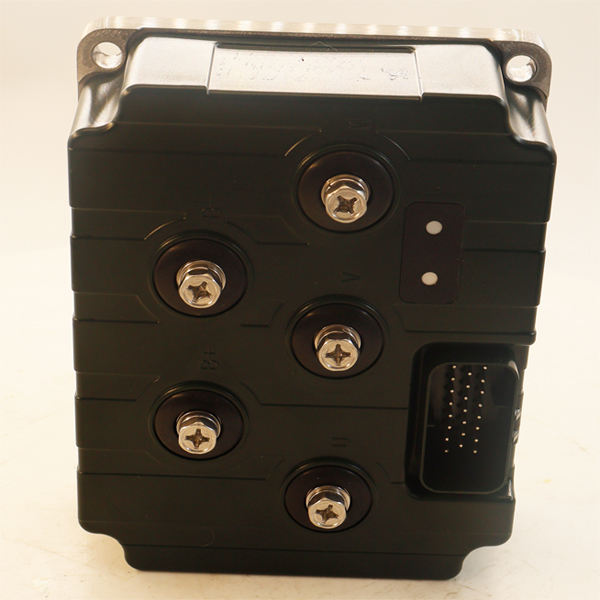

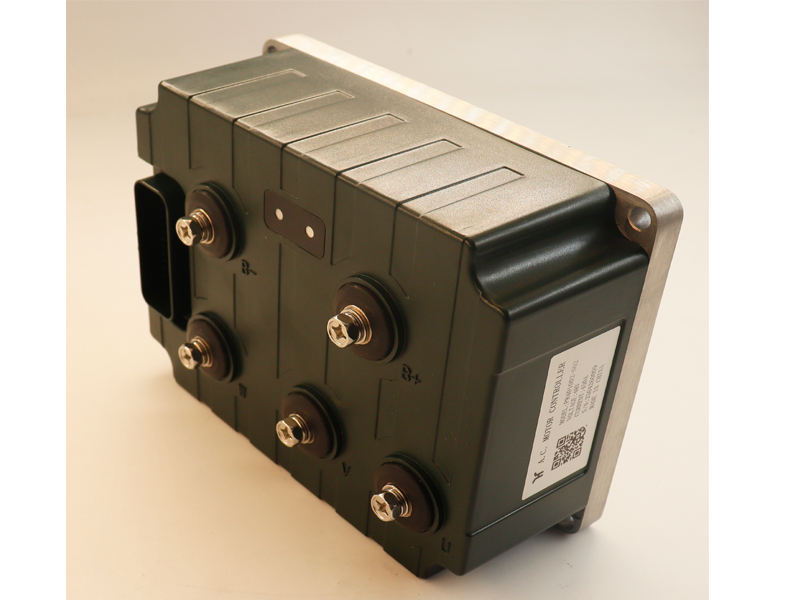

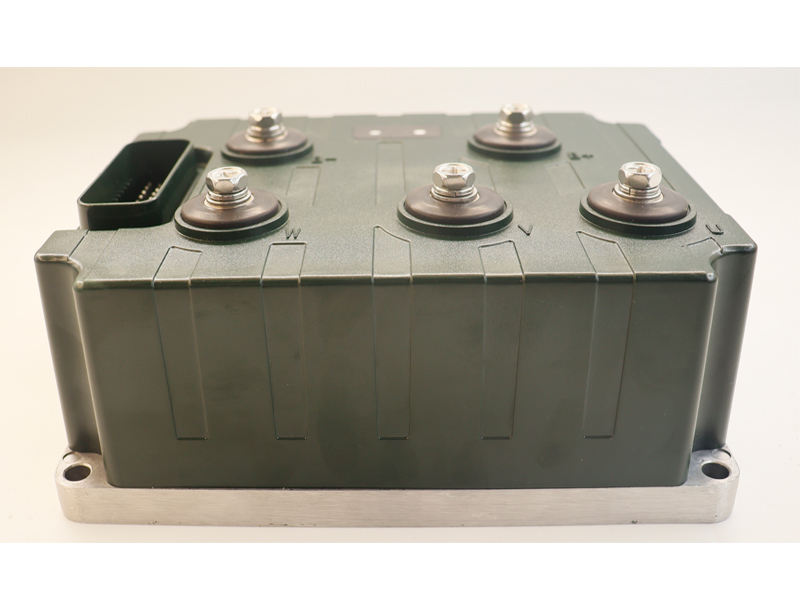

YP,Yuxin 48V/80V 450A/300A 7.5KW/10KW Permanent Magnet Synchronous Motor Controller 3KW AC Asynchronous Motor Controller

    1

    2

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
mailCONTACT NOW pdfpdf Download

We provide you with

  • 48V/450A permanent magnet motor controller description

    1. It is benchmarked against Curtis F2A.
    2. It adopts a dual - MCU redundant design, and its installation dimensions and electrical wiring methods allow for a direct replacement.
    3. The S2 - 2 minutes and S2 - 60 minutes ratings are the currents that are typically reached before thermal derating occurs. The ratings are based on testing with the controller mounted on a 6 mm thick vertical steel plate, with an air flow velocity of 6 km/h (1.7 m/s) perpendicular to the plate, and at an ambient temperature of 25℃.

  • Controller Design Advantages

    ----Advanced control algorithm (FOC) to realize the precise and stable operation.

    ----Dual-chip redundant design to ensure the safety of the vehicle.

    ----Residential and commercial applications.

    ----Easier to adjusting 246 driving experience parameters through PC interface system.

    ----Support 38M17 series split single-turn magnetic encoder and HALL encoder.

    ----Over-voltage, under-voltage, over-current protection and fault code display function.

    ----Certification:
    EMC:EN12895, EN55014-1, EN55014-2, FCC.Part.15B
    Safety certificate：EN1175:2020, EN13849

    ----Communication protocol: CANopen

    ----Software download through CAN Bootloader

  • Advantages of our controller

    Advantages of our controller:
    ---Two MCU design, more safe and more reliable
    ---Protection functions including output over-current, short circuit, open circuit
    ---CAN communication to implement power supply voltage protection
    ---5V and 12V output short circuit and over current protections

Product features

  • 01

    Company Introduction

      Chongging Yuxin Pingrui Elecronic Co, TD. (abbreviated as “Yuxin Electronics,” stock code 301107) is a national high-tech enterprise, which is traded on the Shenzhen Stock Exchange. Yuxin was founded in 2003 and is head-quatered in Gaoxin Disrict chongging. We are dedicated to R&D, manufacturing, and sales electric components for general gasoline engines ,off-road vehicles,and automobile industries. Yuxin always adheres to independent technological innovation. We own three R&D centers located in chongqing, Ningbo and Shenzhen and a comprehensive test center. We also own a technical support center located in Milwaukee, Wisconsin USA. We have 200 national patents, and a number of honors such as little Giants Intellectual Property Advantage Enterprise, Provincial Engineering Technology Research Center, Key Laboratory Ministry of industry and information Technology Industrial Design Center, and a number of international certifications, such as lATF16949, 1S09001, 1S014001 and 1S045001.With advanced R&D technology, manufacturing technology,quality management and global supply capability, Yuxin has established long- term stable cooperative relationships with many domestic and foreign first-class enterprises.

  • 02

    company picture

      dfger1

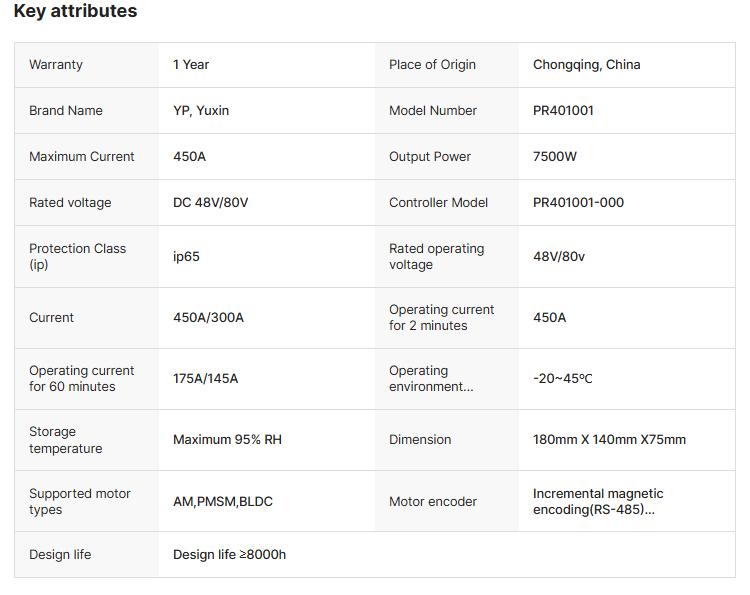

Specifications

121



 Golf-cart motor controller PR401 Series
No.
Parameters
Values
1
Rated operating voltage
48V/80V
2
Voltage range
46 -80V
3
Operating current for 2 minutes
450A/300A
4
Operating current for 60 minutes
175A/145A
5
Operating environment temperature
-20~45℃
6
Storage temperature
-40~90℃
7
Matched motor power
7.5KW/10KW
8
IP level
IP65
9
Dimensions (Length*width*height)
180mm X 140mm X75mm
10
Communication method
CAN Bus（CANOPEN、J1939 protocol）
11
Design life
≥8000h
12
Digital input
14+8(multiplexing)
13
Analog input
13 (multiplexing) 1XTEMP
14
Coil drive output
4X2A(PWM)1X3A(PWM)2X1A(PWM)
15
Power output
lX5V(100mA) lX12V(200mA)
16
Potentiometer input
2

More controller for forklift specification
