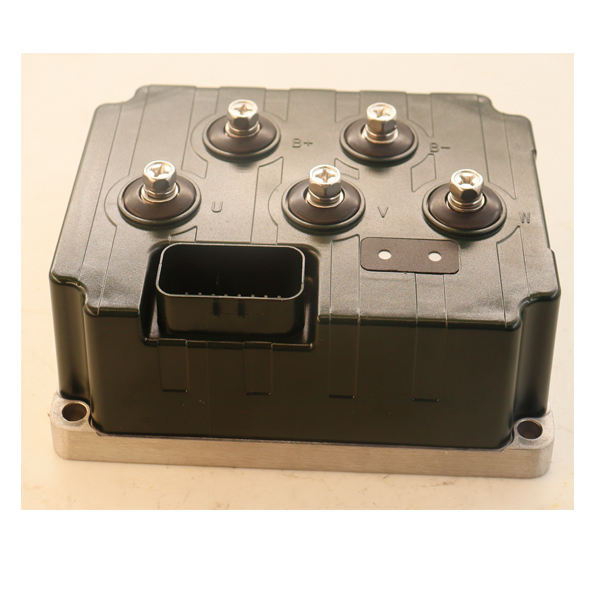

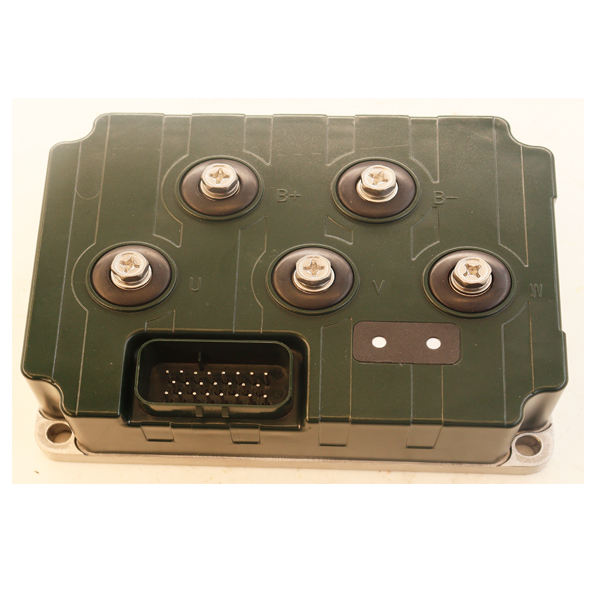

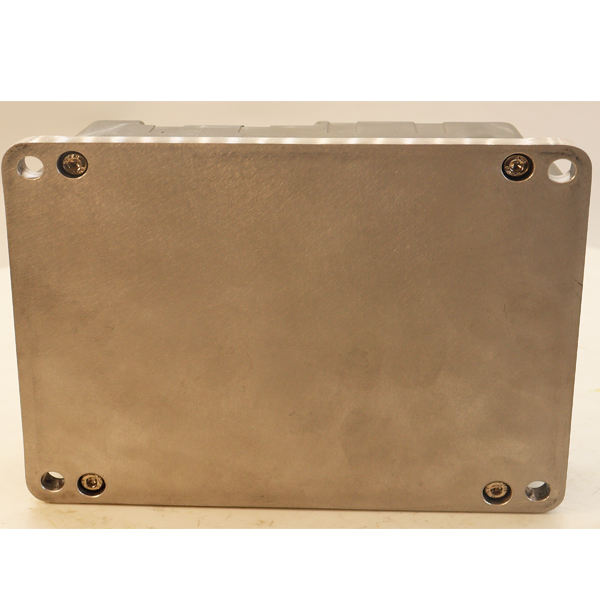

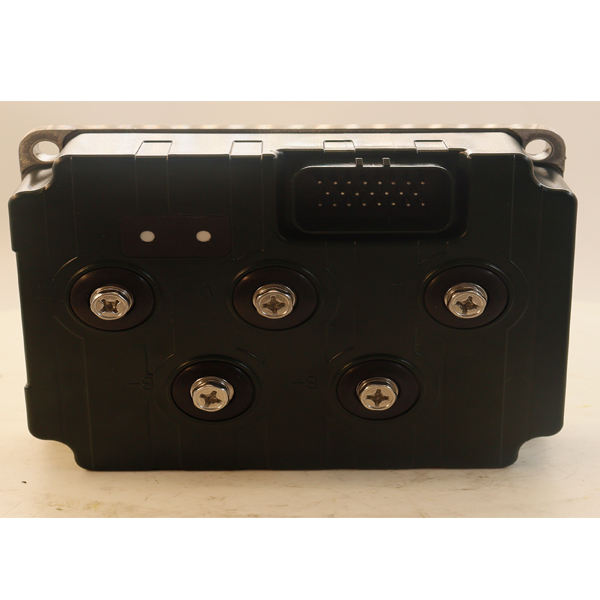

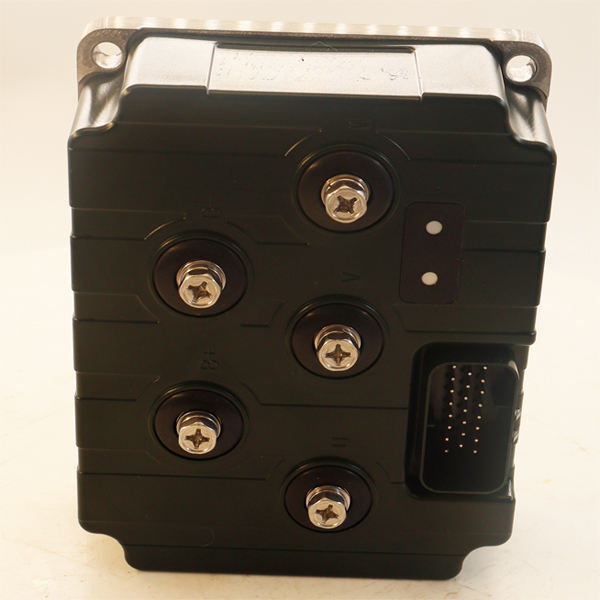

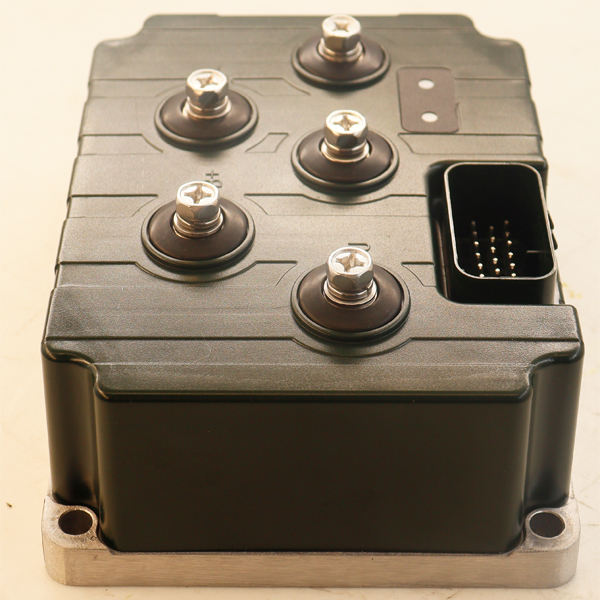

YP,Yuxin 48V/280A Permanent Magnet Motor Controller for Golf Cart and Forklift

    Golf-cart motor controller PR201 Series
    No.
    Parameters
    Values
    1
    Rated operating voltage
    48V
    2
    Voltage range
    18 – 63V
    3
    Operating current for 2 minutes
    280A*
    4
    Operating current for 60 minutes
    130A*
    5
    Operating environment temperature
    -20~45℃
    6
    Storage temperature
    -40~90℃
    7
    Operating humidity
    Maximum 95% RH
    8
    IP level
    IP65
    9
    Supported motor types
    AM、PMSM、BLDC
    10
    Communication method
    CAN Bus（CANOPEN、J1939 protocol）
    11
    Design life
    ≥8000h
    12
    EMC standard
    EN 12895:2015
    13
    Safety certification
    EN ISO13849
  • DM_20250609114007_001
  • DM_20250609114014_001
  • DM_20250609114017_001

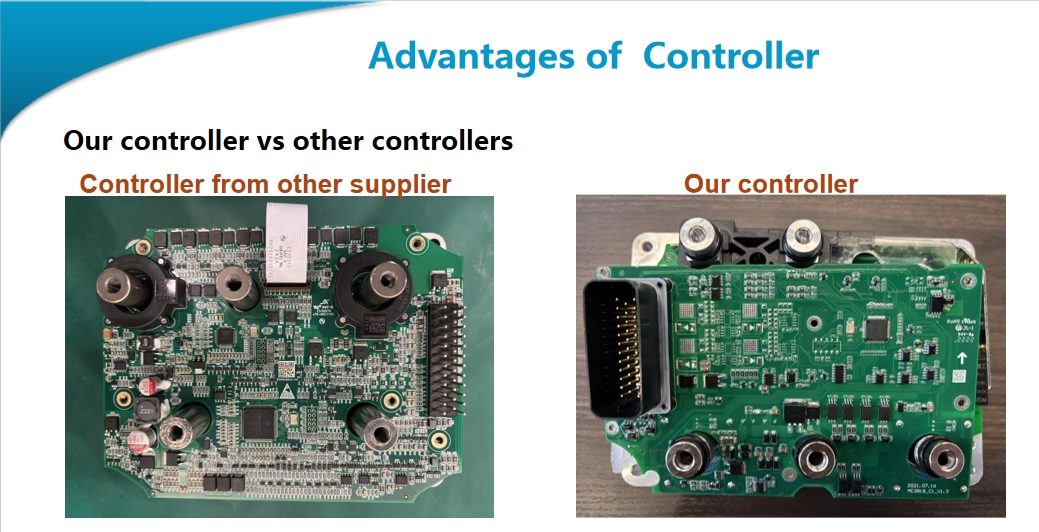

  • DM_20250609114029_001
mailCONTACT NOW pdfpdf Download

We provide you with

  • 48V/280A permanent magnet motor controller description

    1. It is benchmarked against Curtis F2A.
    2. It adopts a dual - MCU redundant design, and its installation dimensions and electrical wiring methods allow for a direct replacement.
    3. The S2 - 2 minutes and S2 - 60 minutes ratings are the currents that are typically reached before thermal derating occurs. The ratings are based on testing with the controller mounted on a 6 mm thick vertical steel plate, with an air flow velocity of 6 km/h (1.7 m/s) perpendicular to the plate, and at an ambient temperature of 25℃.

  • Advantages of our controller

    Advantages of our controller:
    ---Two MCU design, more safe and more reliable
    ---Protection functions including output over-current, short circuit, open circuit
    ---CAN communication to implement power supply voltage protection
    ---5V and 12V output short circuit and over current protections

Product features

  • 01

    Company Introduction

      Chongging Yuxin Pingrui Elecronic Co, TD. (abbreviated as “Yuxin Electronics,” stock code 301107) is a national high-tech enterprise, which is traded on the Shenzhen Stock Exchange. Yuxin was founded in 2003 and is head-quatered in Gaoxin Disrict chongging. We are dedicated to R&D, manufacturing, and sales electric components for general gasoline engines ,off-road vehicles,and automobile industries. Yuxin always adheres to independent technological innovation. We own three R&D centers located in chongqing, Ningbo and Shenzhen and a comprehensive test center. We also own a technical support center located in Milwaukee, Wisconsin USA. We have 200 national patents, and a number of honors such as little Giants Intellectual Property Advantage Enterprise, Provincial Engineering Technology Research Center, Key Laboratory Ministry of industry and information Technology Industrial Design Center, and a number of international certifications, such as lATF16949, 1S09001, 1S014001 and 1S045001.With advanced R&D technology, manufacturing technology,quality management and global supply capability, Yuxin has established long- term stable cooperative relationships with many domestic and foreign first-class enterprises.

  • 02

    company picture

      dfger1

Specifications

121



Golf-cart motor controller PR201 Series
No.
Parameters
Values
1
Rated operating voltage
48V
2
Voltage range
18 – 63V
3
Operating current for 2 minutes
280A*
4
Operating current for 60 minutes
130A*
5
Operating environment temperature
-20~45℃
6
Storage temperature
-40~90℃
7
Operating humidity
Maximum 95% RH
8
IP level
IP65
9
Supported motor types
AM、PMSM、BLDC
10
Communication method
CAN Bus（CANOPEN、J1939 protocol）
11
Design life
≥8000h
12
EMC standard
EN 12895:2015
13
Safety certification
EN ISO13849

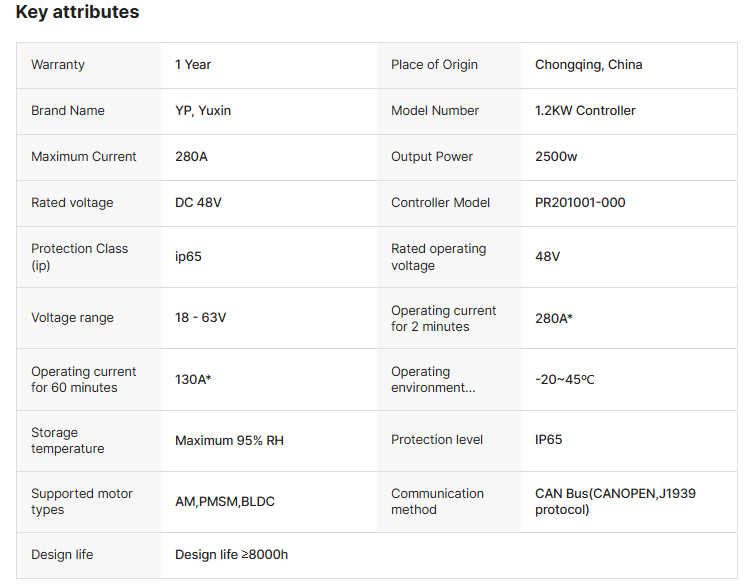

More controller for forklift specification

5DEF1BE5-8021-40b9-AB2C-D16E1D527BAA
