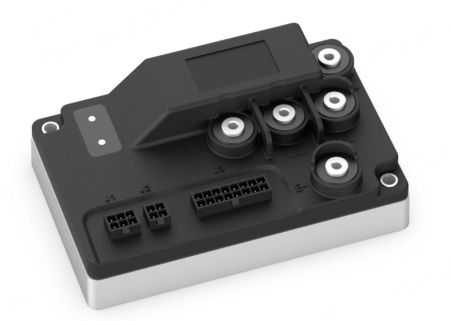

YP,Yuxin 24V/48V/72V 100A HALL/magnetic Encoding(RS-485) Motor Controller for electric forklift

    It is benchmarked against Curtis F2A.

    It adopts a dual – MCU redundant design, and its installation dimensions and electrical wiring methods allow for a direct replacement.



    * The S2 – 2 minutes and S2 – 60 minutes ratings are the currents that are typically reached before thermal derating occurs. The ratings are based on testing with the controller mounted on a 6 mm thick vertical steel plate, with an air flow velocity of 6 km/h (1.7 m/s) perpendicular to the plate, and at an ambient temperature of 25.



    Parameters

    Values

    Rated operating voltage

    24V

    Voltage range

    12 - 30V

    Operating current for 2 minutes

    280A*

    Operating current for 60 minutes

    130A*

    Operating environment temperature

    -20~45℃

    Storage temperature

    -40~90℃

    Operating humidity

    Maximum 95% RH

    IP level

    IP65

    Supported motor types

    AMPMSMBLDC

    Communication method

    CAN BusCANOPENJ1939 protocol

    Design life

    ≥8000h

    EMCstandard

    EN 12895:2015

    Safety certification

    EN ISO13849

We provide you with

  • Advantages of Permanent Magnet Synchronous Motors

    It is benchmarked against Curtis F2A.
    It adopts a dual - MCU redundant design, and its installation dimensions and electrical wiring methods allow for a direct replacement.

    * The S2 - 2 minutes and S2 - 60 minutes ratings are the currents that are typically reached before thermal derating occurs. The ratings are based on testing with the controller mounted on a 6 mm thick vertical steel plate, with an air flow velocity of 6 km/h (1.7 m/s) perpendicular to the plate, and at an ambient temperature of 25℃.

Product features

  • 01

    Company Introduction

      Chongging Yuxin Pingrui Elecronic Co, TD. (abbreviated as “Yuxin Electronics,” stock code 301107) is a national high-tech enterprise, which is traded on the Shenzhen Stock Exchange. Yuxin was founded in 2003 and is head-quatered in Gaoxin Disrict chongging. We are dedicated to R&D, manufacturing, and sales electric components for general gasoline engines ,off-road vehicles,and automobile industries. Yuxin always adheres to independent technological innovation. We own three R&D centers located in chongqing, Ningbo and Shenzhen and a comprehensive test center. We also own a technical support center located in Milwaukee, Wisconsin USA. We have 200 national patents, and a number of honors such as little Giants Intellectual Property Advantage Enterprise, Provincial Engineering Technology Research Center, Key Laboratory Ministry of industry and information Technology Industrial Design Center, and a number of international certifications, such as lATF16949, 1S09001, 1S014001 and 1S045001.With advanced R&D technology, manufacturing technology,quality management and global supply capability, Yuxin has established long- term stable cooperative relationships with many domestic and foreign first-class enterprises.

  • 02

    company picture

      dfger1

Specifications

121



Parameters

Values

Rated operating voltage

24V

Voltage range

12 - 30V

Operating current for 2 minutes

280A*

Operating current for 60 minutes

130A*

Operating environment temperature

-20~45℃

Storage temperature

-40~90℃

Operating humidity

Maximum 95% RH

IP level

IP65

Supported motor types

AMPMSMBLDC

Communication method

CAN BusCANOPENJ1939 protocol

Design life

≥8000h

EMCstandard

EN 12895:2015

Safety certification

EN ISO13849

More controller for forklift specification

No. Yuxin part number Curtis part number

Description

Applicable vehicle

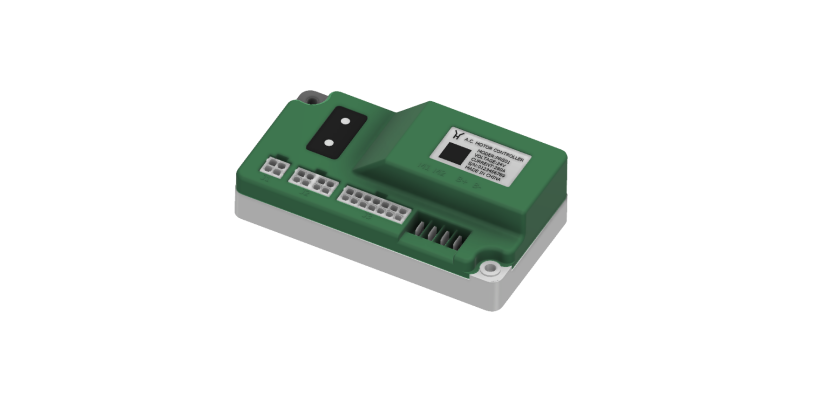

1 PRD01001 1212E 24V/110A brushed motor controller (European standards compliance) 1.5T Handling Trolley

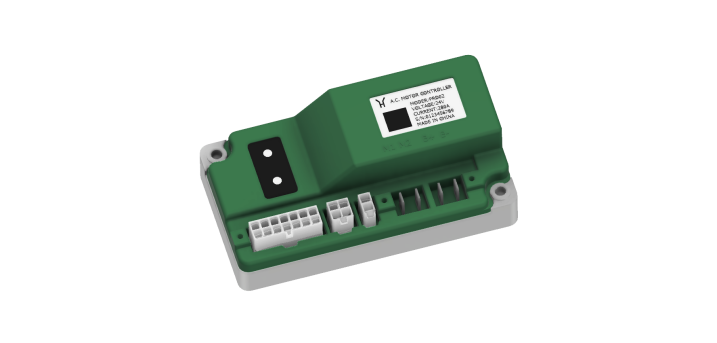

2 PRD02001 1212C 24V/90A brushed motor controller (China standards compliance) 1.5T Handling Trolley
3 PR201007 F2A 24V/200A AC asynchronous motor controller (European standard compliance) 2T Pallet Trolley
4 PR201001 F2A 24V/280A AC asynchronous motor controller (European standards compliance) 3T Pallet Trolley
5 PRE01001 1220E Brushed steering controller (European standard compliance) 2T, 3T Pallet Trolley
6 PRE02001 1220 Brushed steering controller (China standards compliance) 2T, 3T Pallet Trolley
7 PRB01001 1226BL 48V/120A brushless motor controller (European standard compliance) 2T Handling Trolley
8 PR20C001 F2C 24V/240A/280A AC asynchronous, brushed motor controller (European standards compliance) 2T Stacker Cranes

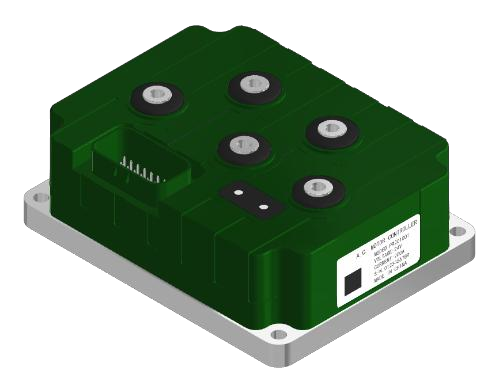

9 PR401001 F4A 48V/450A AC asynchronous, permanent magnet synchronous motor controller (European standards compliance) Large reach forklift truck
10 PR1352 1352 Expansion Module (VCU) Large reach forklift truck
11 PRE03001 1222 AC asynchronous electrical steering controller (European standard compliance) Large reach forklift truck
12 PR401001 F4A 48V/450A AC asynchronous, permanent magnet synchronous motor controller (European standards compliance) Forklift truck
13 PR601003 F6A 80V/350A AC asynchronous, permanent magnet synchronous motor controller (European standards compliance) Forklift truck
14 PR1313 1313 Vehicle Handheld Programmer All vehicles of customers
